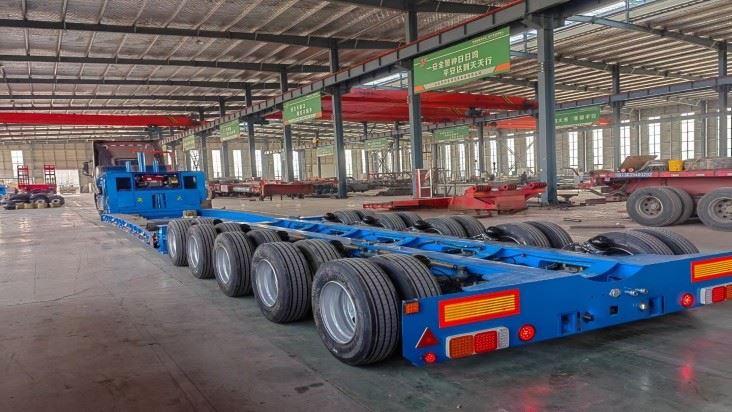

Vehicle name: 5-axle 60-ton low-bed trailer
Used to transport large construction machinery and equipment
Size: 16000~20000mm*3000~3200*350 (working surface height)
The working surface can be extended to 6000mm.
It has the function of goose head hydraulic lifting and automatic goose head removal.
Axle: Bull (steering axle) 5*11.5 tons.
Suspension: mechanical suspension.
Leaf spring: 90mm*20mm*4pcs.
Tire: 245/70R19.5 or 245/70R17.5*20pc.
Ladder: designed as required.
Container twist lock: optional with or without
Tare weight: 24000Kg~27000Kg.
Material: Q345B or Q550D or Q690D or T700.
Kingpin: 90# or 50# optional.
Brake: Drum brake
Brake valve: KANGJIAN or WABCO.
Color: As required.
Warranty: 1 year.
The middle splicing port uses hydraulic lifting to adjust the height, which can be adjusted for 3 times to meet the requirements of customers.
5+2 axle heavy-duty special transport low-bed trailer.
The rear is designed with splices to add axles and tires. Minimize the working face, suitable for transporting large diameter circular cylinders.
The middle splicing port uses hydraulic lifting to adjust the height, which can be adjusted for 3 times to meet the requirements of customers.
5+2 axle heavy-duty special transport low-bed trailer.
It has a large and flexible cargo platform. The pull-out cargo platform design can be extended from 8000mm to 14000mm, and the height from the ground is up to 200mm, which reduces the center of gravity and height of the cargo, meets the transportation of extra-long and extra-high cargo, and is especially suitable for the transportation of non-detachable heavy equipment.
The rear 5 axles all have steering functions, and the turning radius is reduced by 30%-40% compared with conventional vehicles, and the traffic capacity in narrow sections is good.
The hydraulic lifting goose head with a lifting height of 400mm can effectively adjust the height of the cargo platform. When encountering height restrictions such as bridges and tunnels, the cargo platform can be reduced to the minimum.
The use of high-strength steel ensures that the trailer has a large enough carrying capacity of 60T-80T.
This vehicle is designed to be modular and multi-purpose, especially suitable for the transportation of extra-high and extra-long cargo. The axles can be spliced at the back to increase the transportation length and transportation strength. It is also an ideal trailer for transporting large diameter and extra-long cylinders. Although the investment cost is high, the returns are also very high.
